16 Inch Articulated Dirt Road

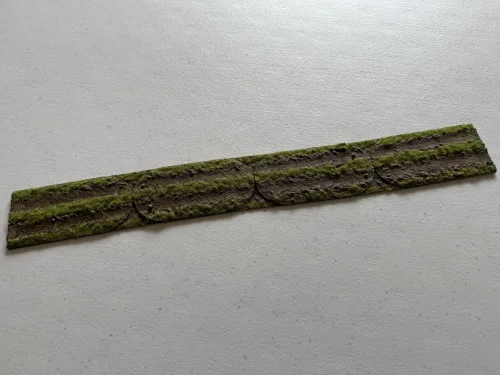

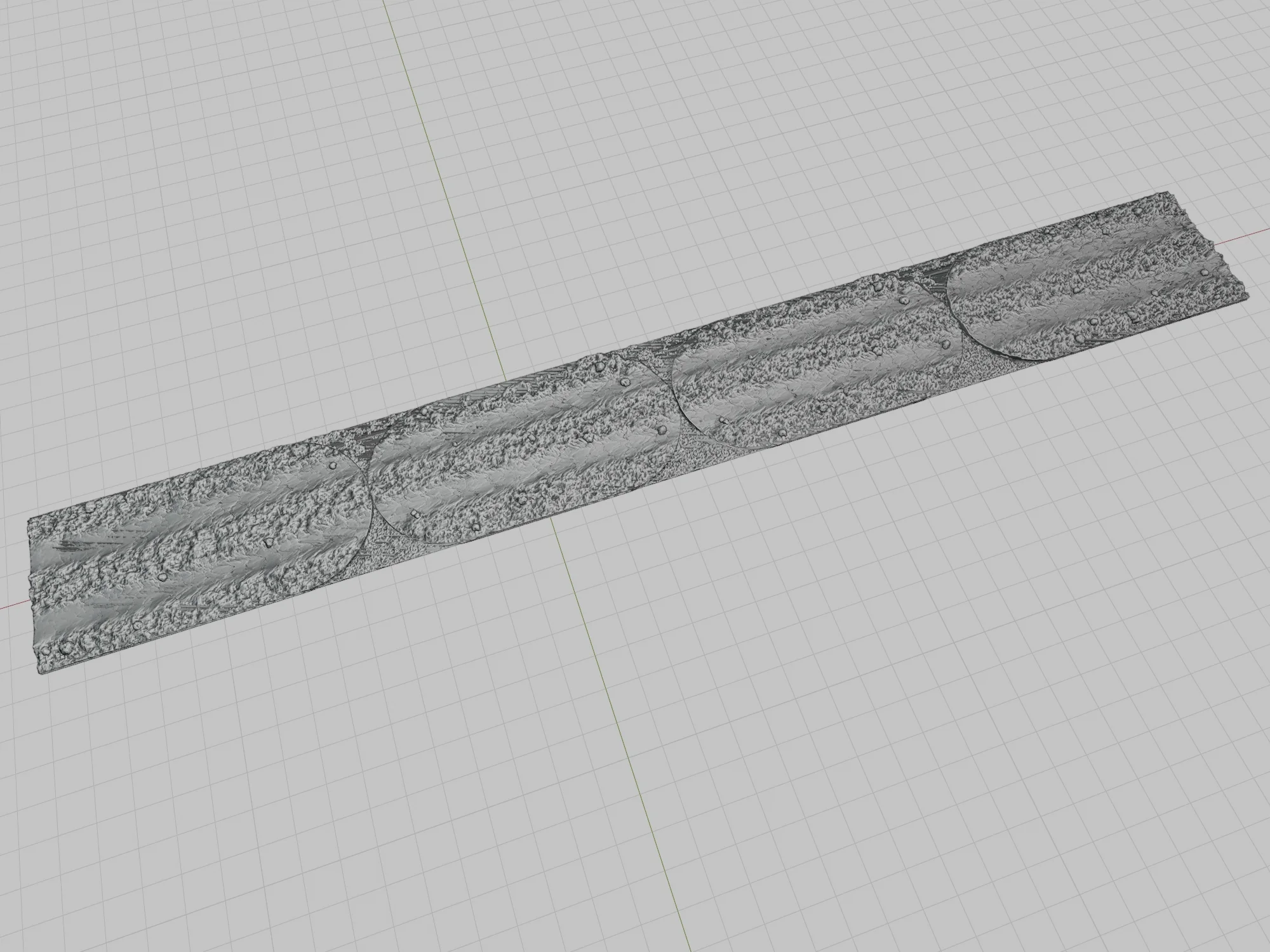

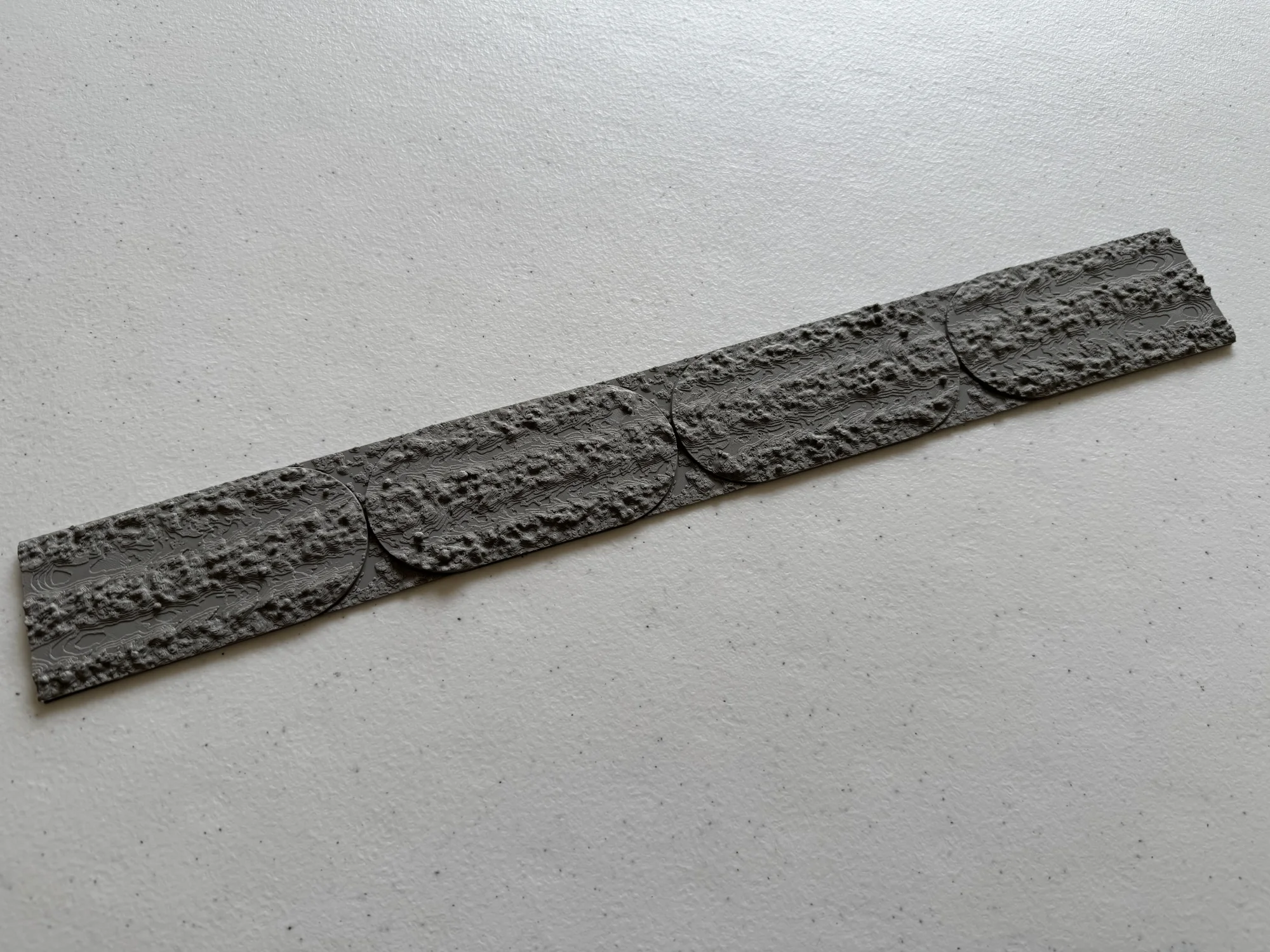

An articulating section of dirt road comprised of 4 sections for a total length of 16-inches and modelled with a mud and rocks texture covering its surface. The flexible nature of this model allows complex organic dirt road layouts to connect seamlessly.
Category: Dirt Roads
Model Code: DR-M-012
MakerWorld Download:
MODEL STATISTICS
Number of Build Plates
4
Print Time
3h 51m
Filament Used
61.33g
Multi-Part Model
✔
Requires Assembly
✔
Requires Glue
✔
Includes Supports
✖

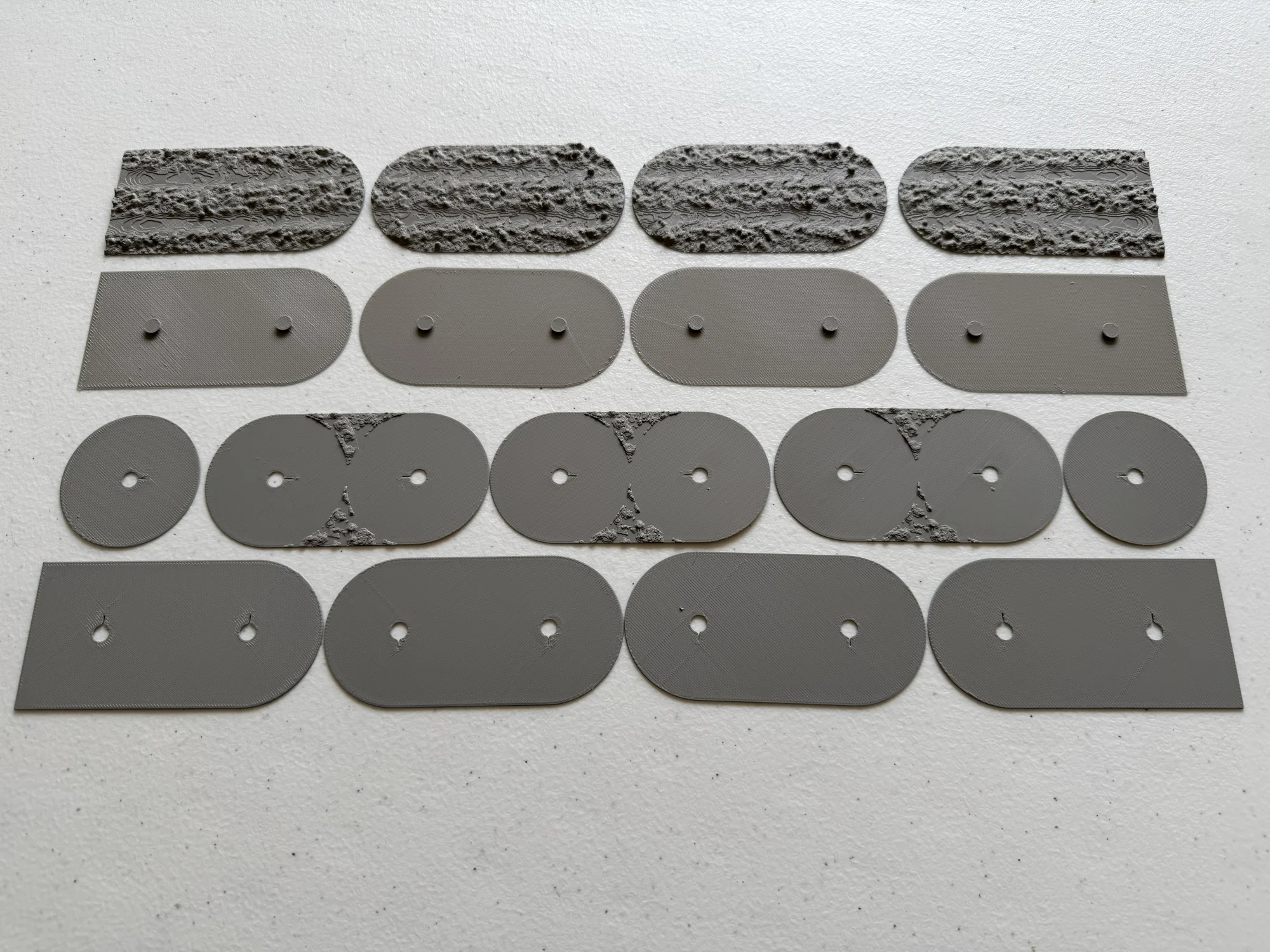

Model Part List
| Part Name | Part Code | Part Description | Quantity | |
|---|---|---|---|---|
 |
Left Base | DR-P-001 | Left base component which forms the bottom layer of the articulated dirt road system. | 1 |
 |
Middle Base | DR-P-002 | Middle base component which forms the bottom layer of the articulated dirt road system. | 2 |
 |
Right Base | DR-P-003 | Right base component which forms the bottom layer of the articulated dirt road system. | 1 |
 |
End Link | DR-P-004 | End Link component designed to provide the correct spacing between the bottom and top layers of the articulated dirt road system. | 2 |
 |
Middle Link | DR-P-005 | Chain link component designed to connect the different sections of the articulated dirt road system. | 3 |
 |

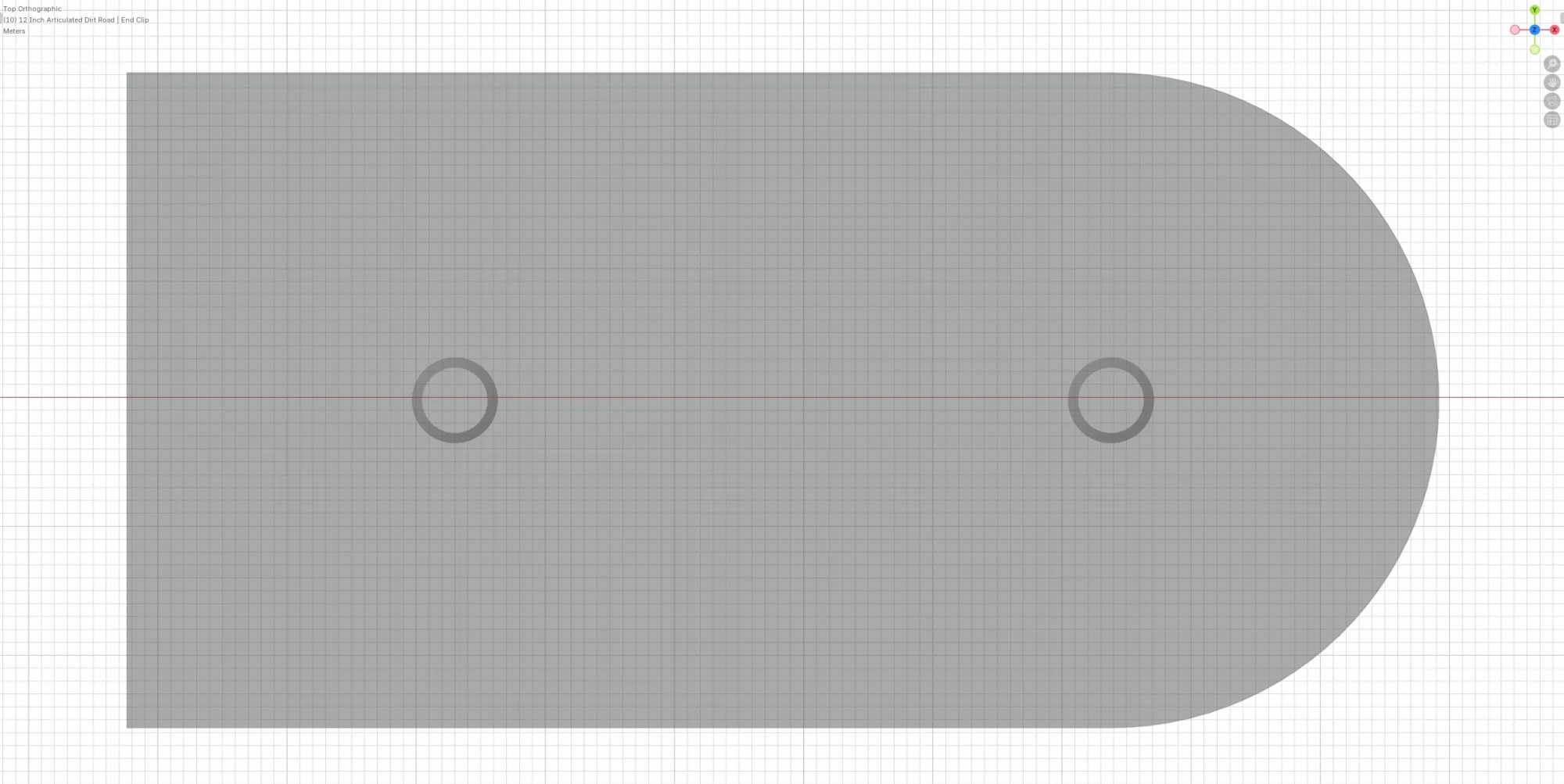

End Clip | DR-P-006 | End clip component designed to clip together the top, middle and bottom layers of the articulated dirt road system. | 2 |
 |

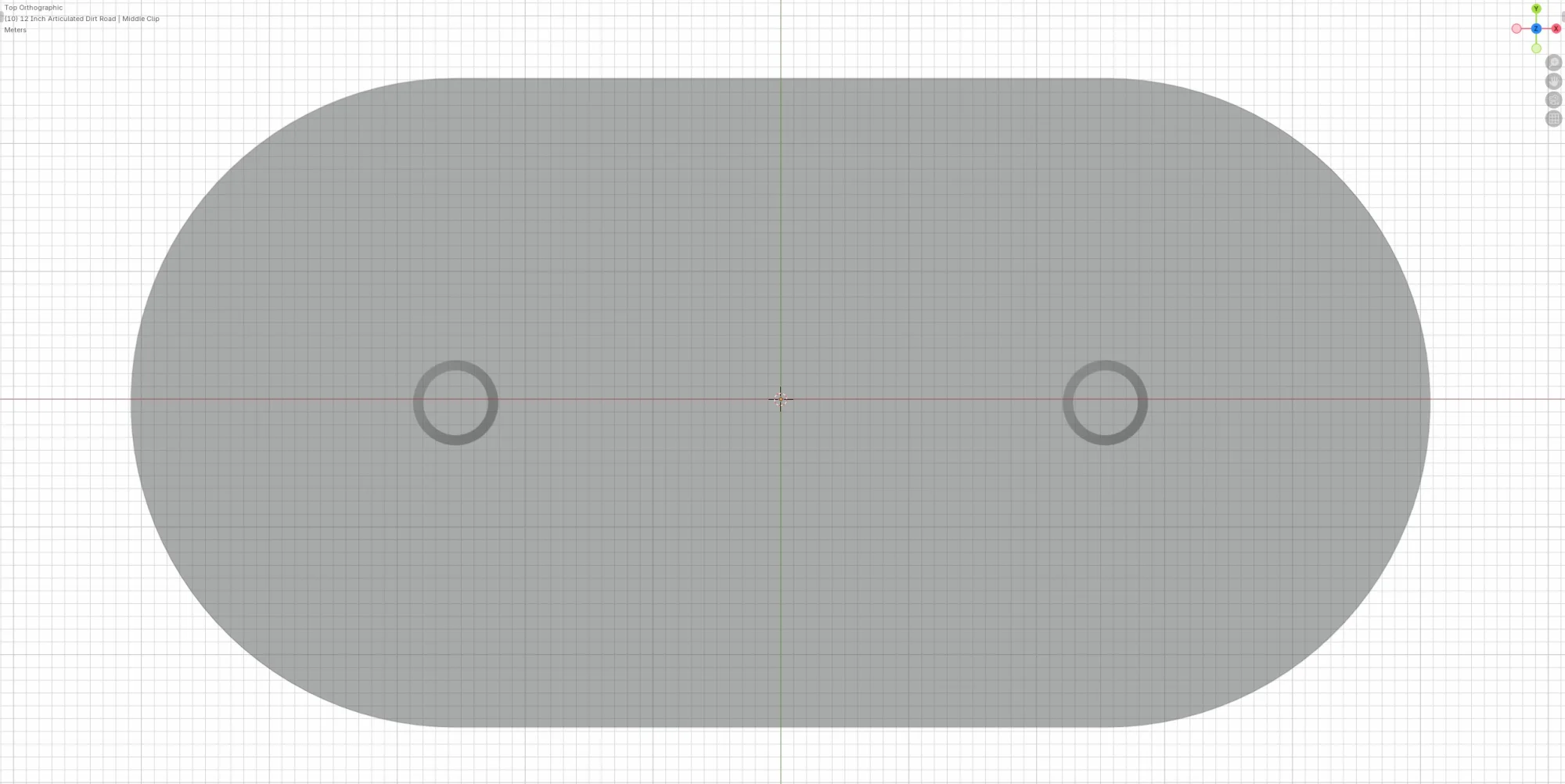

Middle Clip | DR-P-007 | Middle clip component designed to clip together the top, middle and bottom layers of the articulated dirt road system. | 2 |
 |
End Dirt Texture | DR-P-008 | Adds a dirt road texture to the end sections of the articulated dirt road system. | 2 |
 |

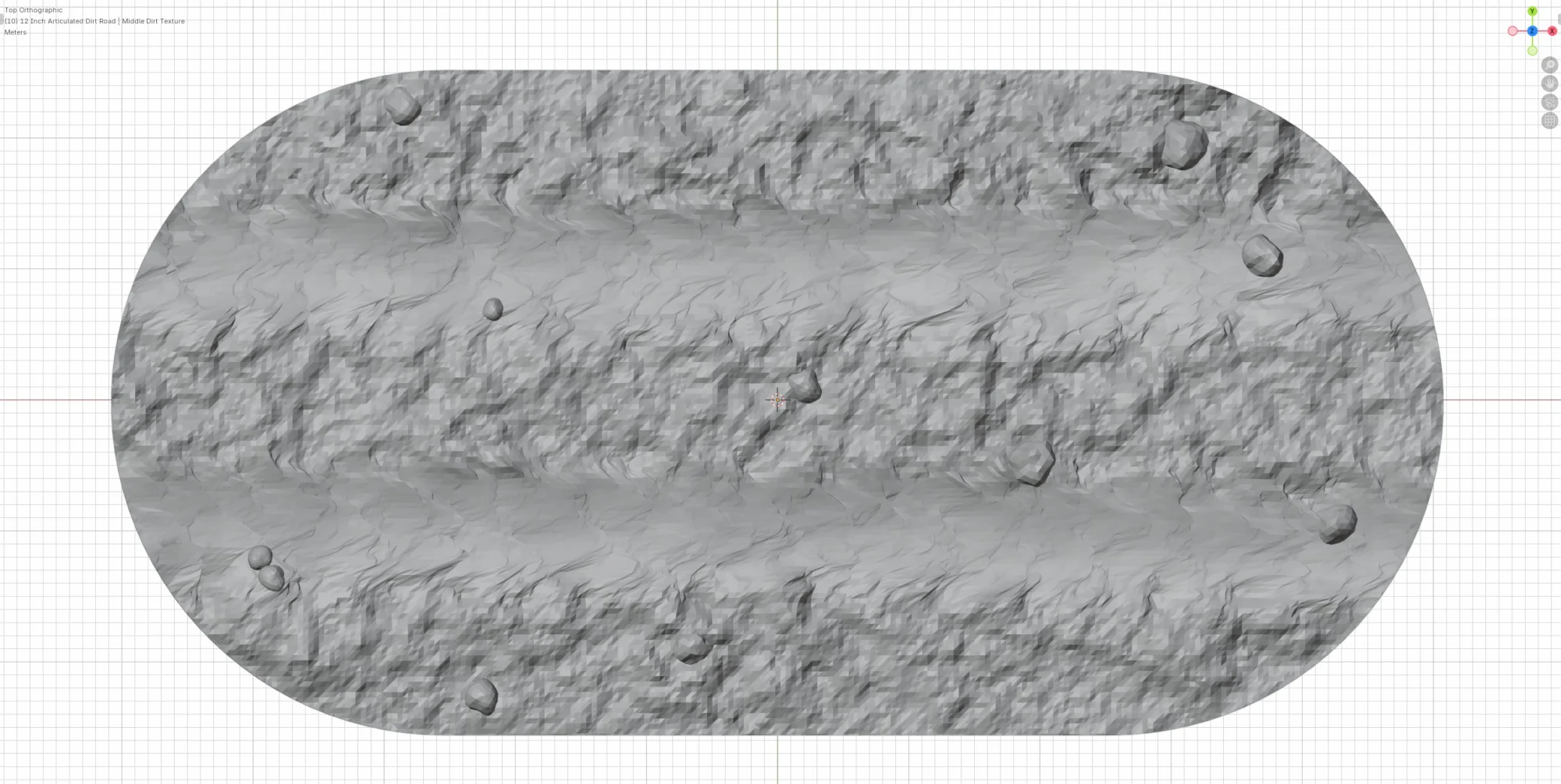

Middle Dirt Texture | DR-P-009 | Adds a dirt road texture to the middle sections of the articulated dirt road system. | 2 |
