12 Inch Articulated Dirt Road

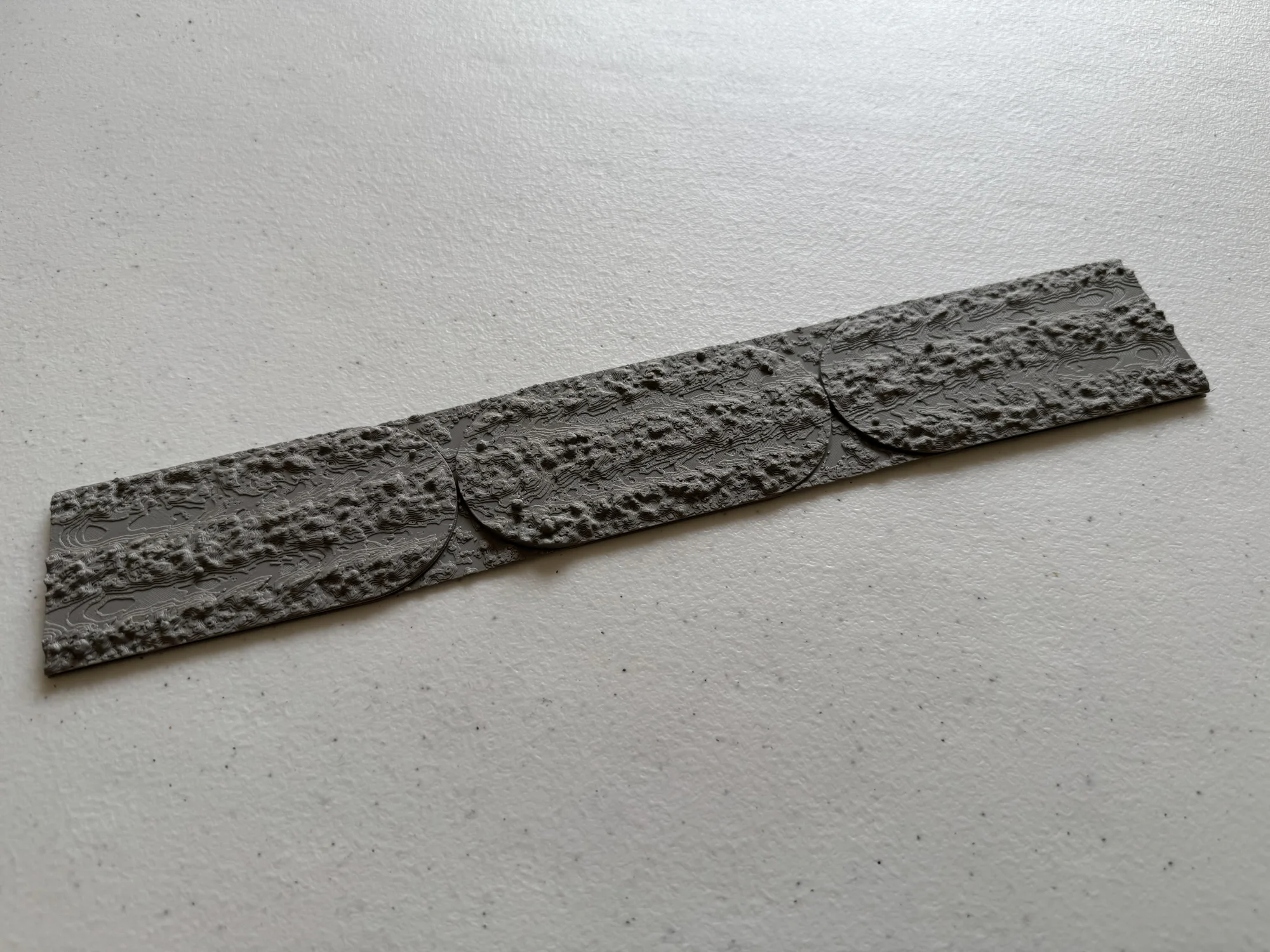

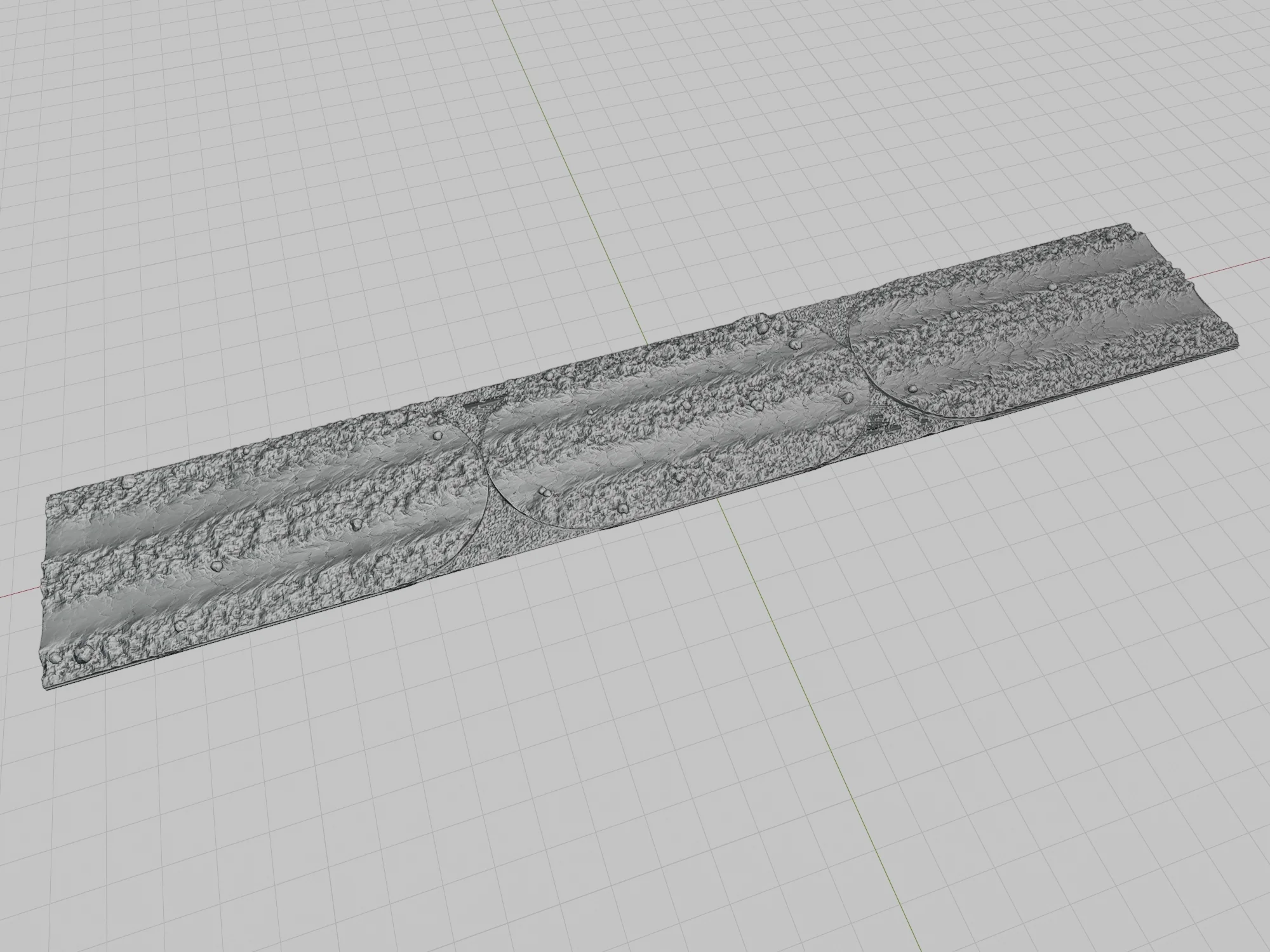

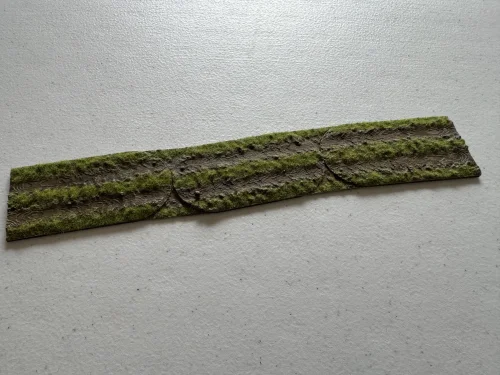

An articulating section of dirt road comprised of 3 sections for a total length of 12-inches and modelled with a mud and rocks texture covering its surface. The flexible nature of this model allows complex organic dirt road layouts to connect seamlessly.

Category: Dirt Roads
Model Code: DR-M-011
MakerWorld Link: 12 Inch Articulated Dirt Road
Has Multiple Parts: Yes

Image Reconnaissance

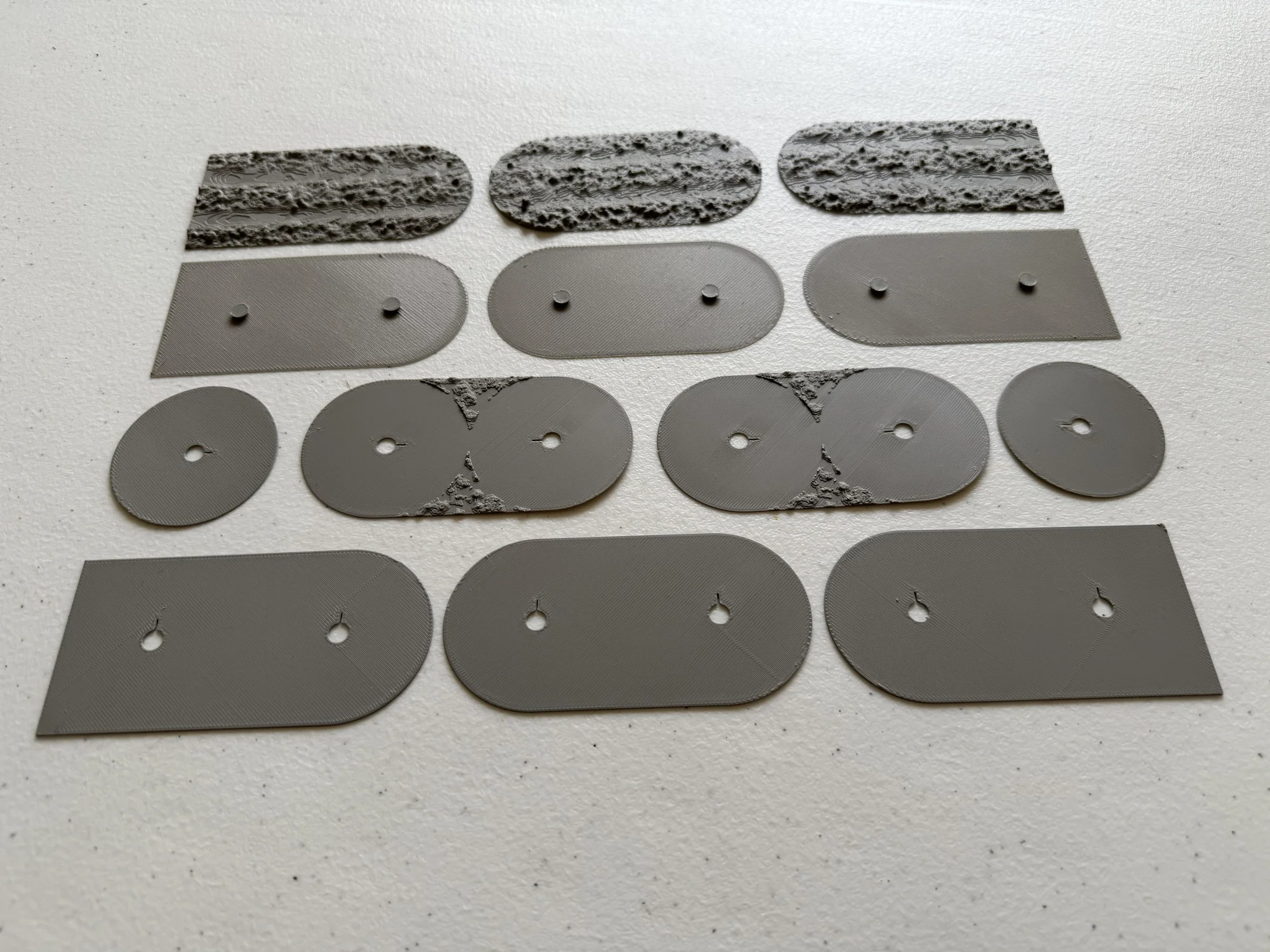

Model Part List

Part Name	Part Code	Part Description	Quantity
Left Base	DR-P-001	Left base component which forms the bottom layer of the articulated dirt road system.	1
Middle Base	DR-P-002	Middle base component which forms the bottom layer of the articulated dirt road system.	1
Right Base	DR-P-003	Right base component which forms the bottom layer of the articulated dirt road system.	1
End Link	DR-P-004	End Link component designed to provide the correct spacing between the bottom and top layers of the articulated dirt road system.	2
Middle Link	DR-P-005	Chain link component designed to connect the different sections of the articulated dirt road system.	2
End Clip	DR-P-006	End clip component designed to clip together the top, middle and bottom layers of the articulated dirt road system.	2
Middle Clip	DR-P-007	Middle clip component designed to clip together the top, middle and bottom layers of the articulated dirt road system.	1
End Dirt Texture	DR-P-008	Adds a dirt road texture to the end sections of the articulated dirt road system.	2
Middle Dirt Texture	DR-P-009	Adds a dirt road texture to the middle sections of the articulated dirt road system.	1
