6 Inch Articulated Bocage

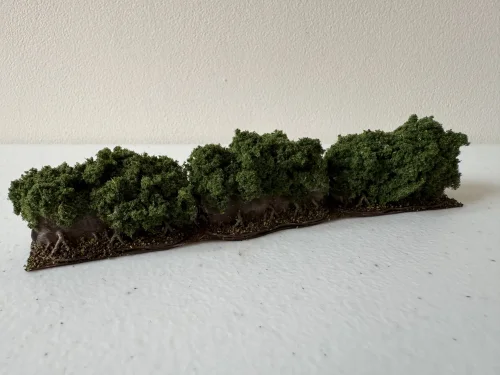

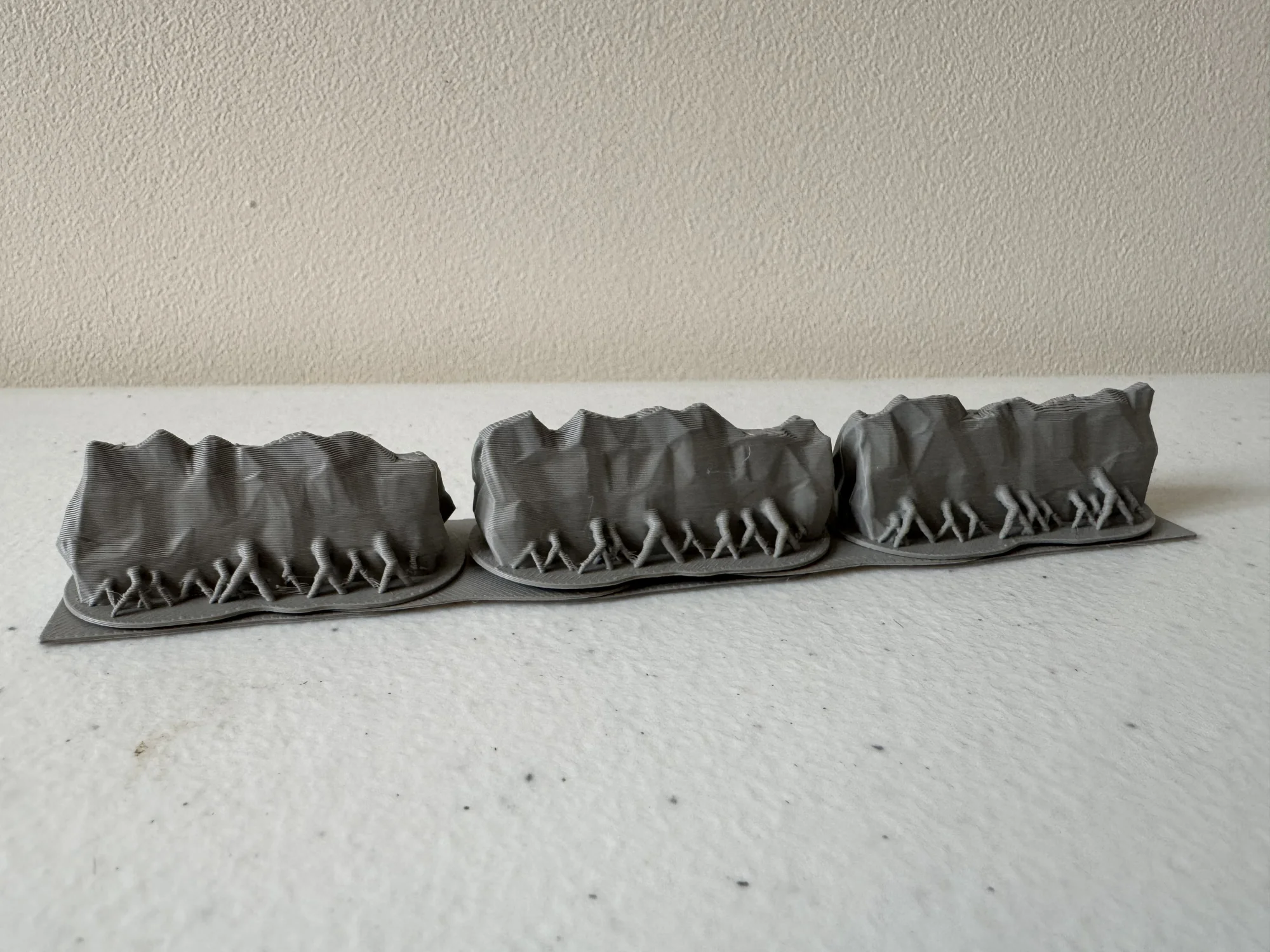

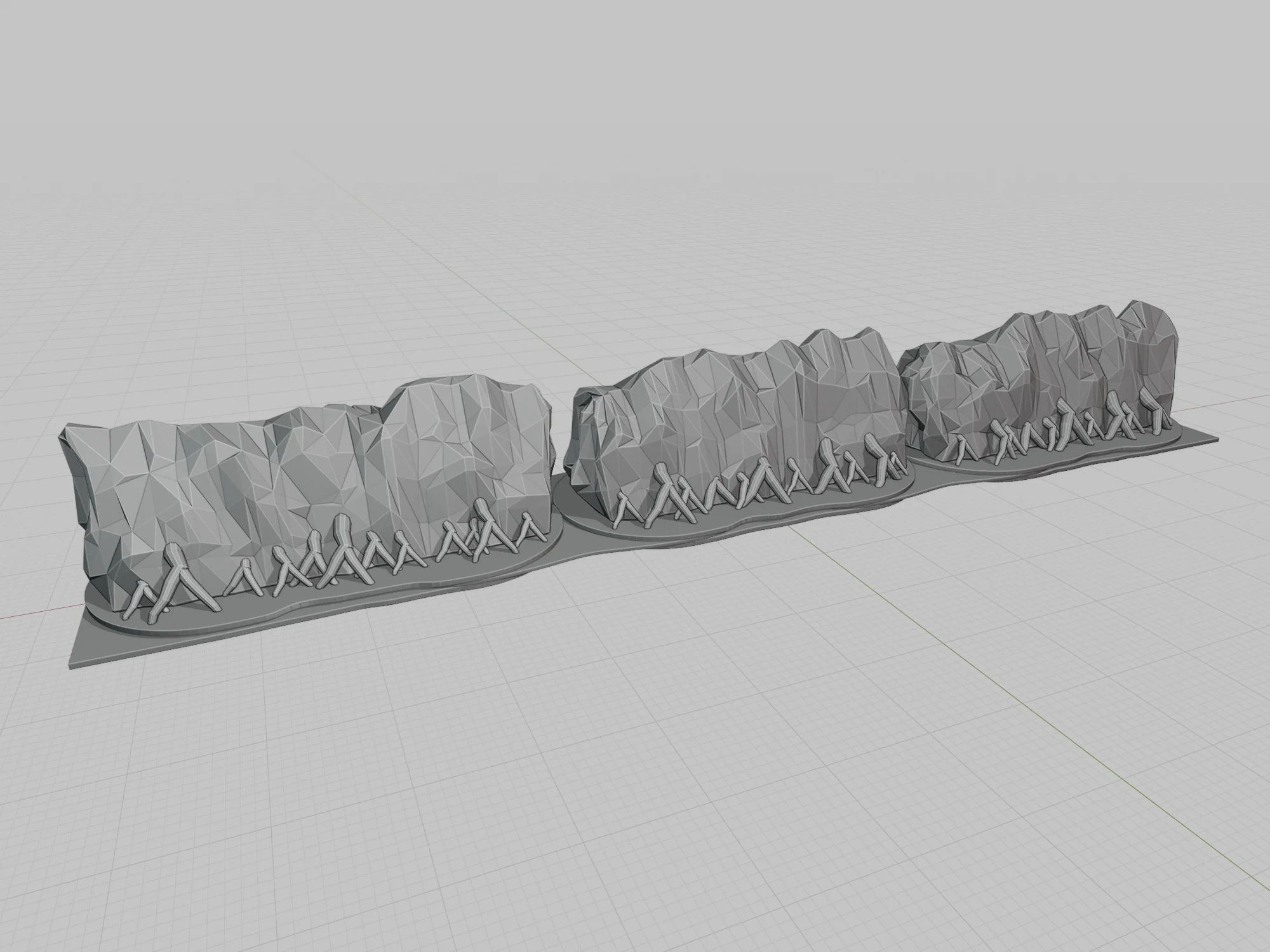

An articulating section of bocage comprised of 3 sections for a total length of 6 inches. The flexible nature of this model allows it to flow naturally around curved sections of road.

Category: Bocage
Model Code: BO-M-009
MakerWorld Download:

MODEL STATISTICS

Number of Build Plates

Print Time

1h 7m

Filament Used

18.12g

Multi-Part Model

✔

Requires Assembly

✔

Requires Glue

✖

Includes Supports

✖

VIEW GUIDE

Image Reconnaissance

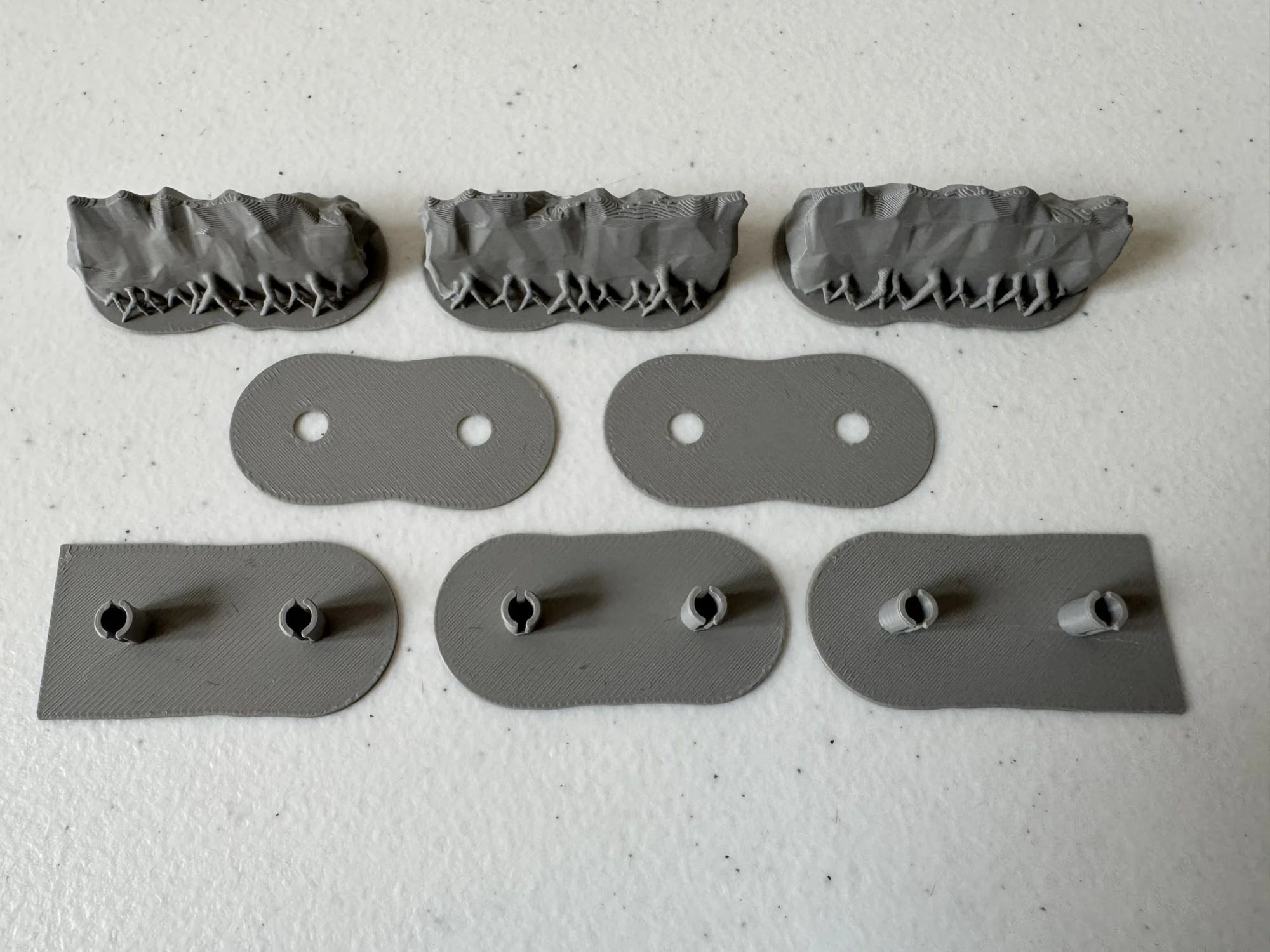

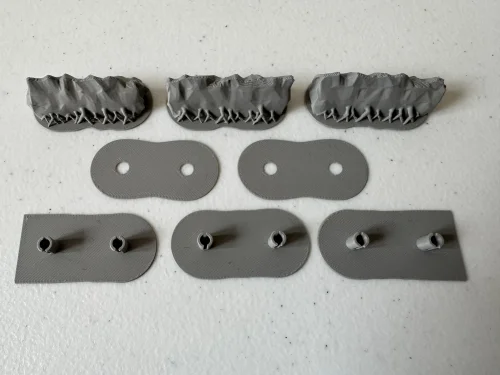

Model Part List

Part Name	Part Code	Part Description	Quantity
End Base	BO-P-003	Base layer component with push-fit pins designed to hold the bocage sections in place whilst allowing free rotation. The End Base component has one flat edge to provide a straight end to an articulated bocage section.	2
Middle Base	BO-P-004	Base layer component with push-fit pins designed to hold the bocage sections in place whilst allowing free rotation. The Middle Base component has curved edges on both sides to allow maximum flexibility when used in the middle of an articulated bocage model.	1
Link	BO-P-006	Middle link layer component designed to slot over the push-fit pins of the base layer and connect different bocage sections together whilst allowing full, flexible rotation.	2
Bocage Top - v1	BO-P-007-A	A decorative top layer component containing a main block structure to hold clump foliage bocage, modelled with a twisted root structure to give the impression of dense bocage once decorated. To provide variation in longer articulated bocage sections, four variants of this part have been designed, with this being variant 1.	1
Bocage Top - v2	BO-P-007-B	A decorative top layer component containing a main block structure to hold clump foliage bocage, modelled with a twisted root structure to give the impression of dense bocage once decorated. To provide variation in longer articulated bocage sections, four variants of this part have been designed, with this being variant 2.	1
Bocage Top - v3	BO-P-007-C	A decorative top layer component containing a main block structure to hold clump foliage bocage, modelled with a twisted root structure to give the impression of dense bocage once decorated. To provide variation in longer articulated bocage sections, four variants of this part have been designed, with this being variant 3.	1
