3 Inch Articulated Bocage

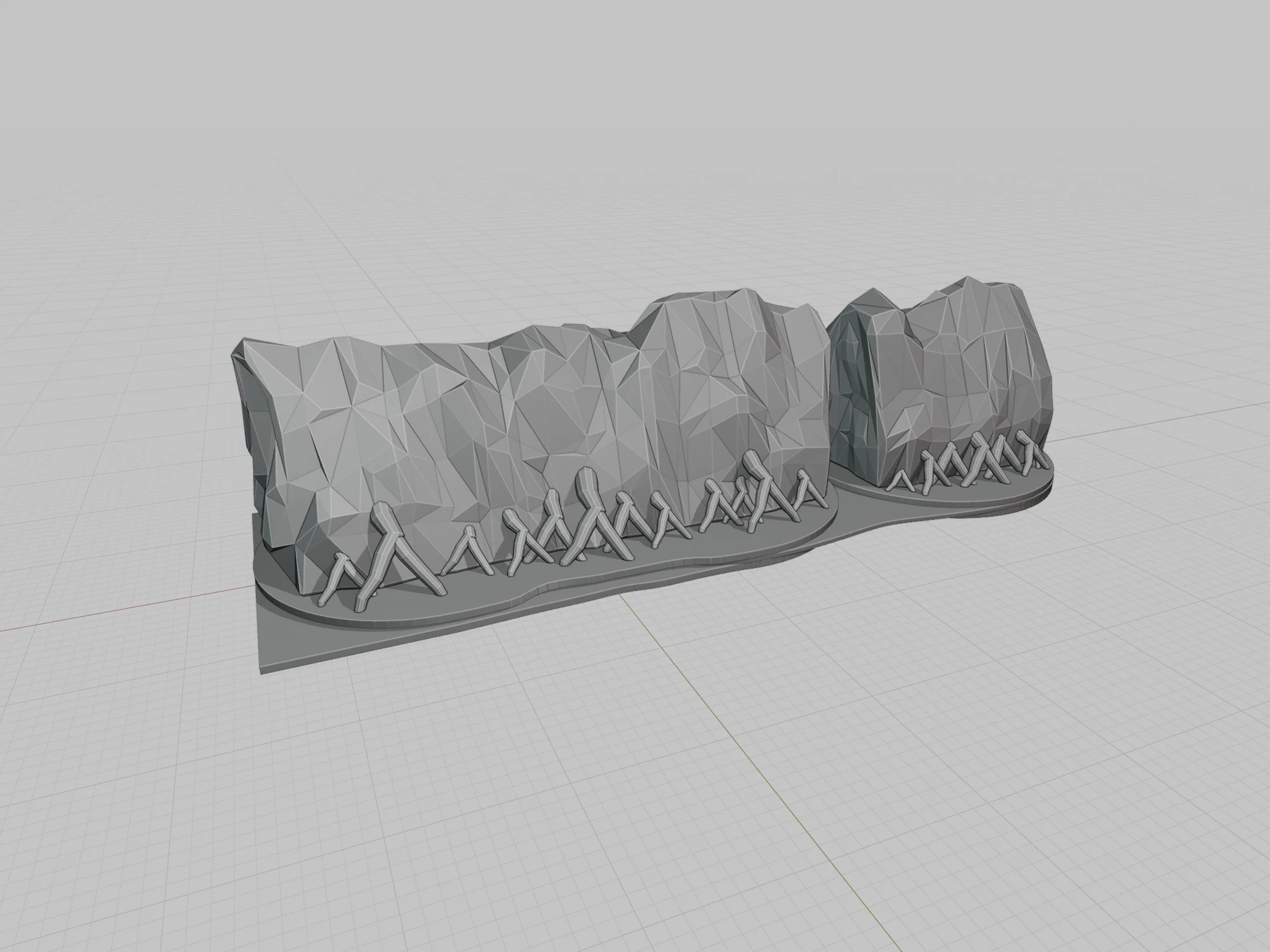

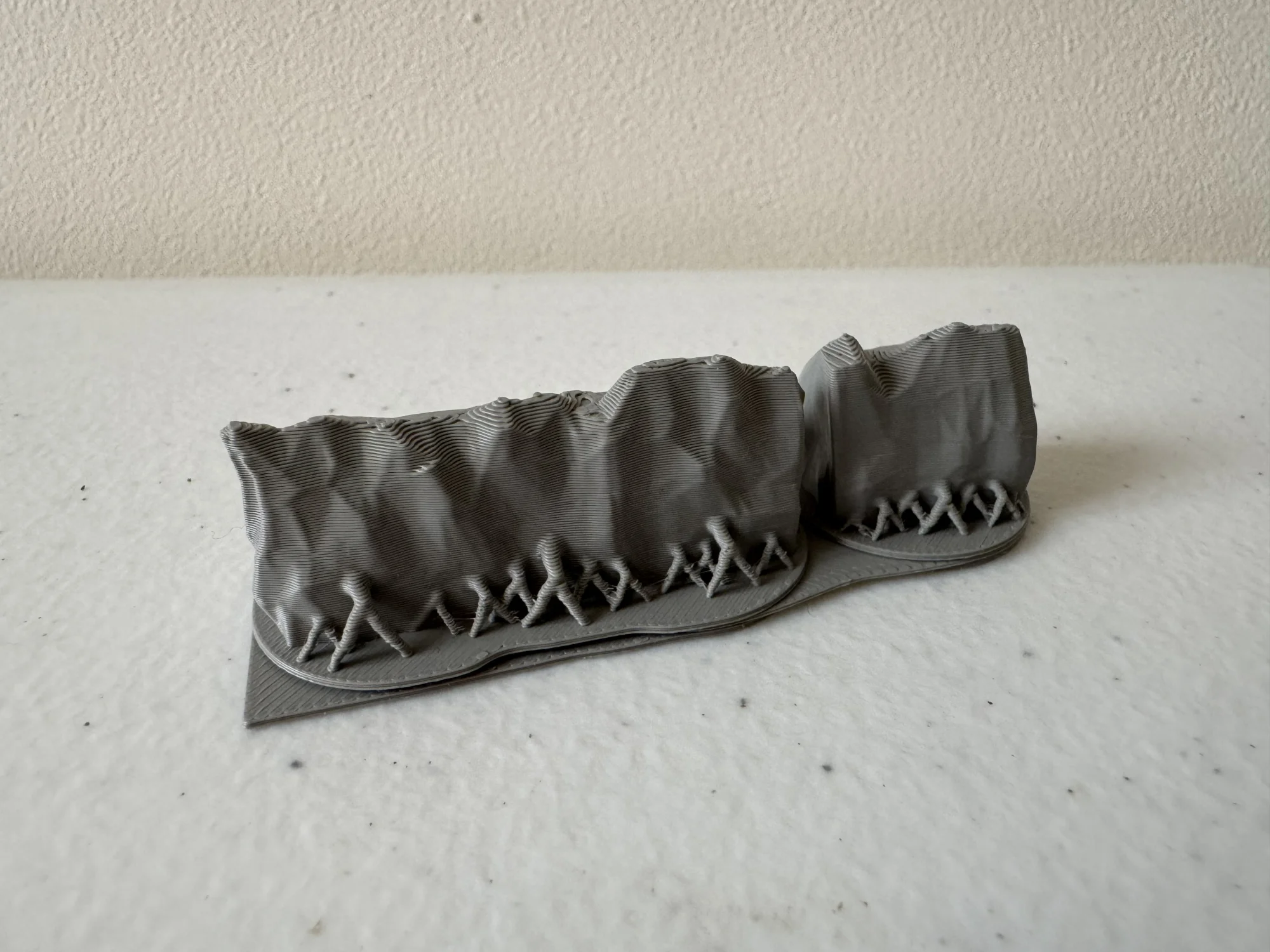

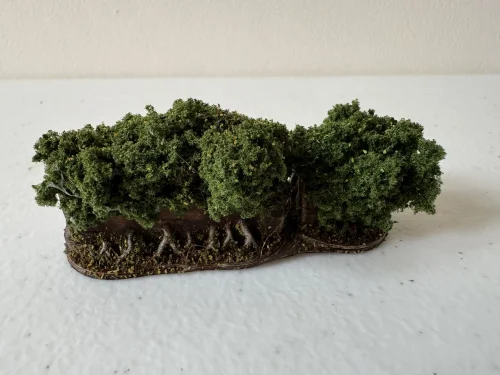

An articulating section of bocage comprised of 1.5 sections for a total length of 3 inches. The flexible nature of this model allows it to flow naturally around curved sections of road.

Category: Bocage
Model Code: BO-M-007
MakerWorld Download:

MODEL STATISTICS

Number of Build Plates

Print Time

38m 15s

Filament Used

9.08g

Multi-Part Model

✔

Requires Assembly

✔

Requires Glue

✖

Includes Supports

✖

VIEW GUIDE

Image Reconnaissance

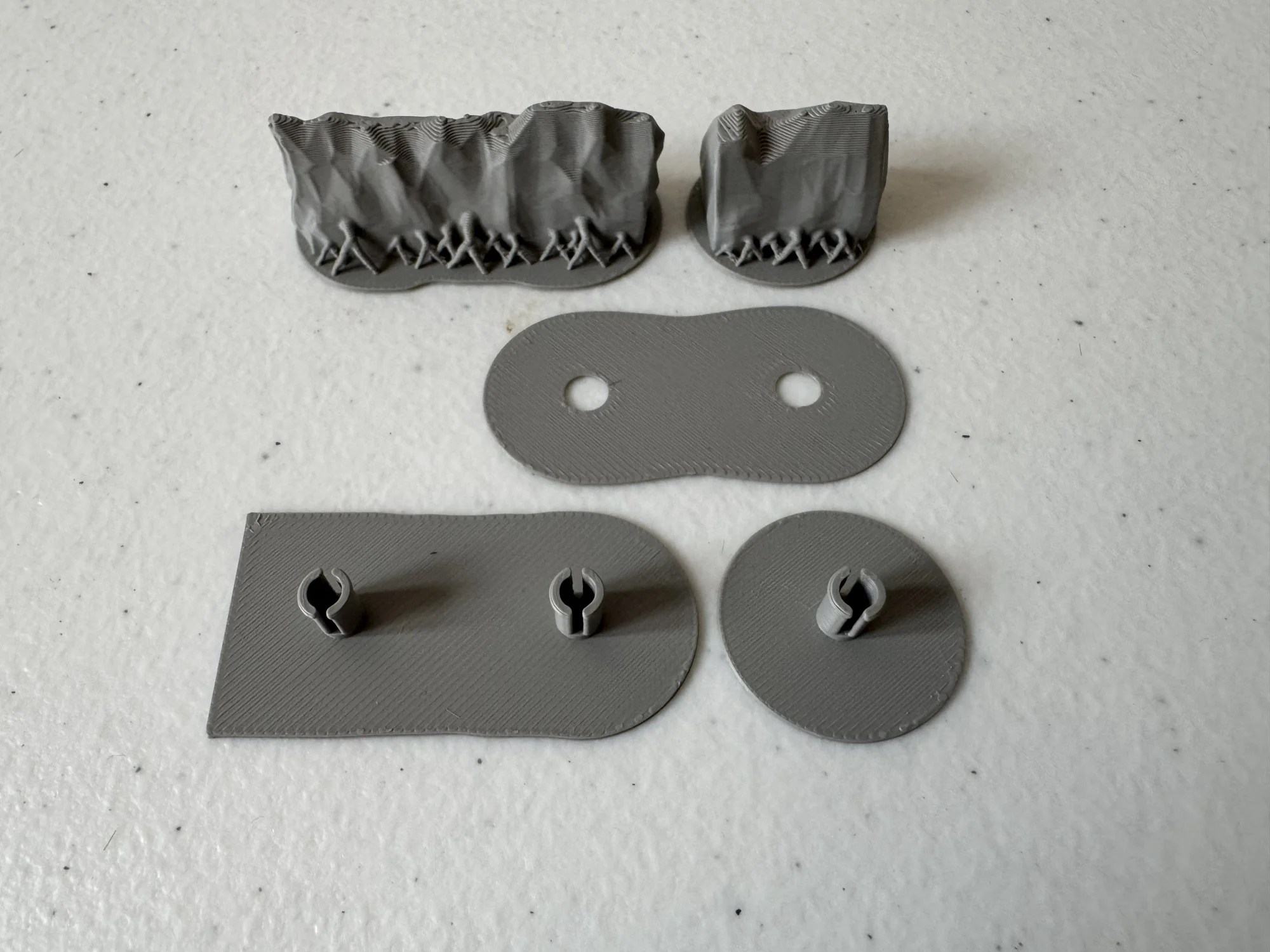

Model Part List

Part Name	Part Code	Part Description	Quantity
End Base	BO-P-003	Base layer component with push-fit pins designed to hold the bocage sections in place whilst allowing free rotation. The End Base component has one flat edge to provide a straight end to an articulated bocage section.	1

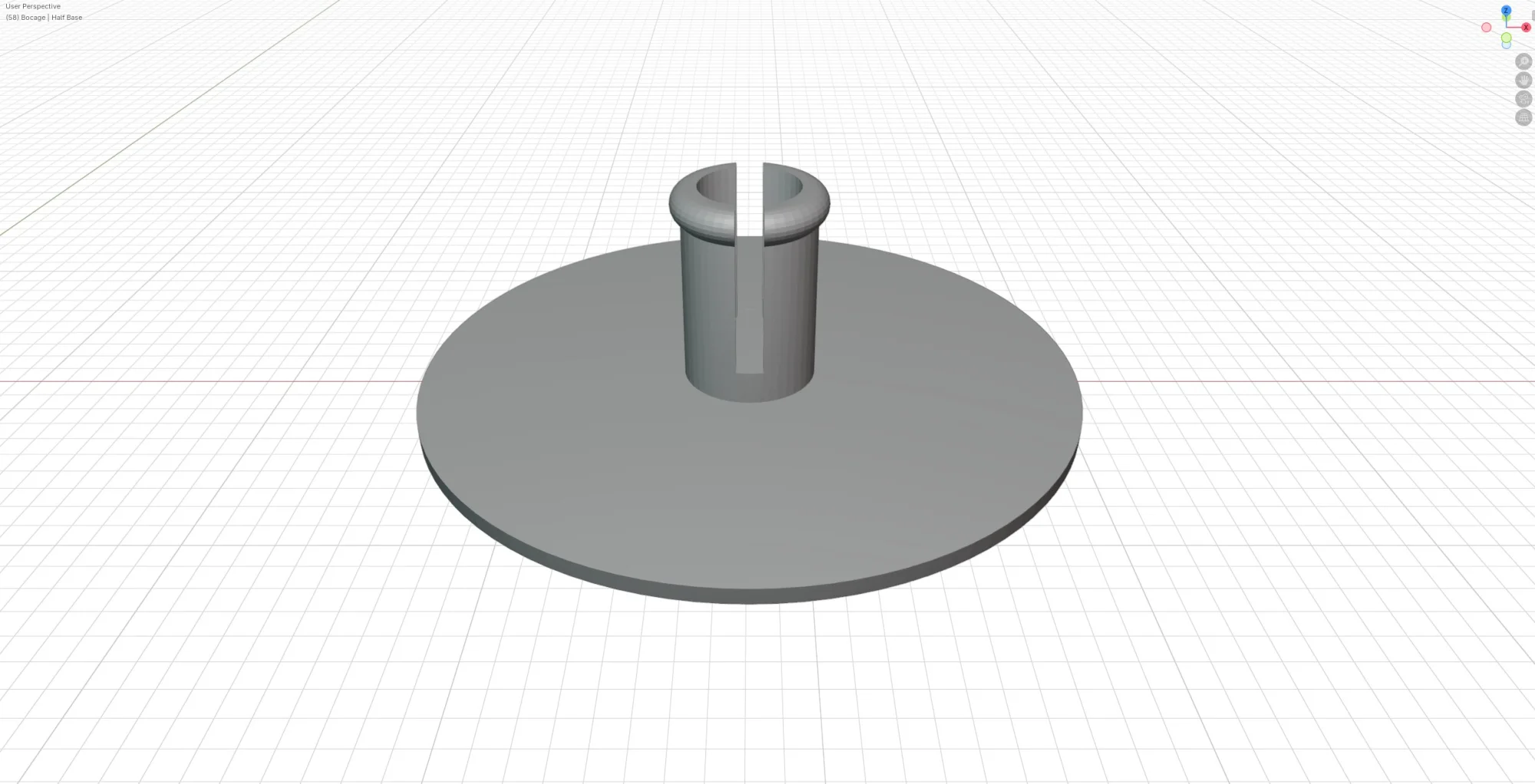

Half Base	BO-P-005	Base layer component with a single push-fit pin designed to hold the bocage sections in place whilst allowing free rotation. The Half Base component has a length of 1 inch, as opposed to the standard 2 inches of normal bocage sections, allowing it to create articulated bocage sections with a total length equal to an odd number of inches.	1
Link	BO-P-006	Middle link layer component designed to slot over the push-fit pins of the base layer and connect different bocage sections together whilst allowing full, flexible rotation.	1
Bocage Top - v1	BO-P-007-A	A decorative top layer component containing a main block structure to hold clump foliage bocage, modelled with a twisted root structure to give the impression of dense bocage once decorated. To provide variation in longer articulated bocage sections, four variants of this part have been designed, with this being variant 1.	1

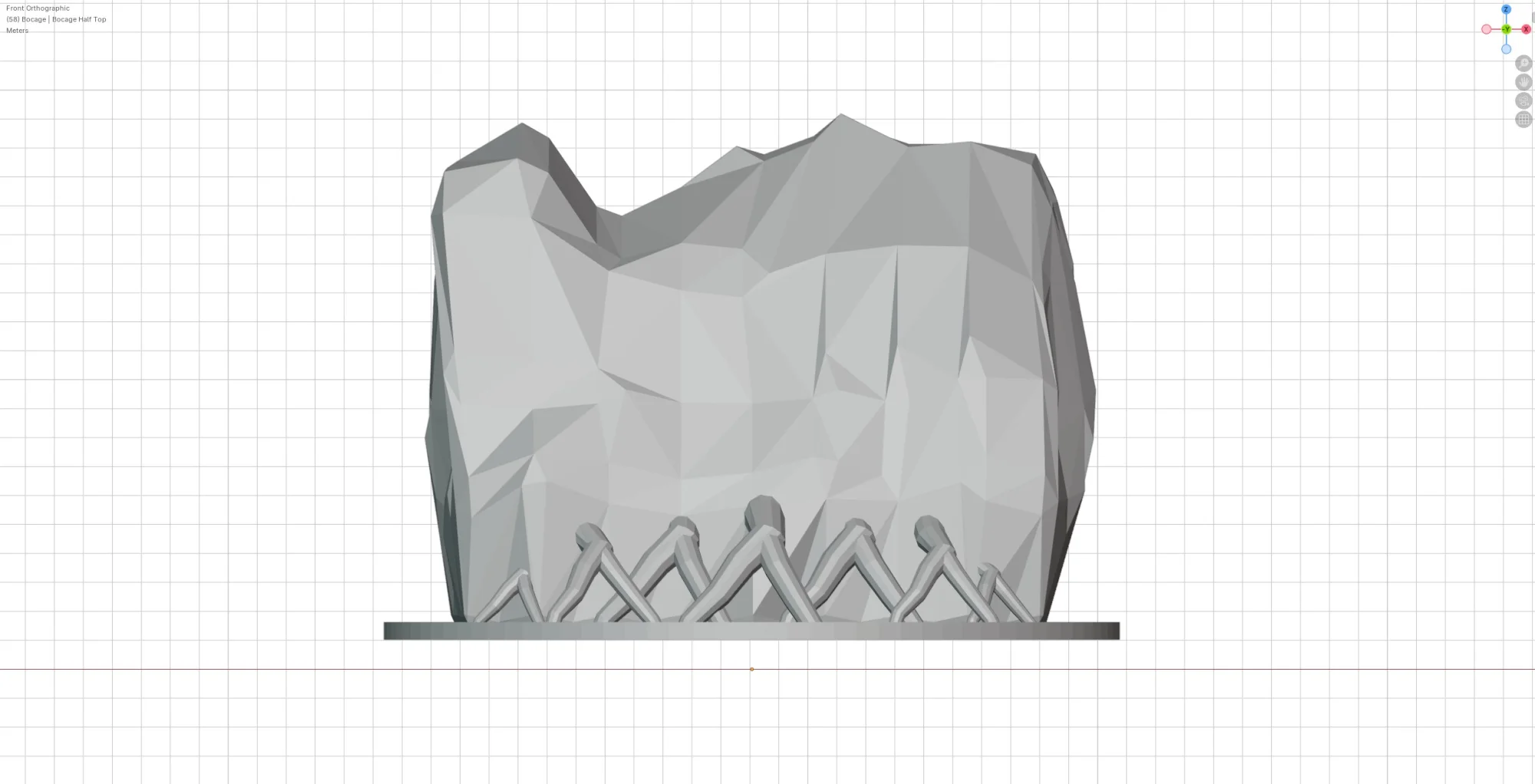

Bocage Half Top	BO-P-008	A decorative top layer component containing a main block structure to hold clump foliage bocage, modelled with a twisted root structure to give the impression of dense bocage once decorated. This top part is half the standard width of normal bocage components, allowing it to sit on top of a Half Base part.	1

Bocage Models

Model Name	Model Code	Model Description	Category
6 Inch Straight	BO-M-001	A 6 Inch straight piece of continuous bocage.	Bocage
6 Inch Straight with Damaged Wall	BO-M-002	A 6 Inch straight piece of bocage with a damaged section of brick wall in the centre.	Bocage
6 Inch Straight with Gate	BO-M-003	A 6 Inch straight piece of bocage with a gated wall in the centre.	Bocage
6 Inch Straight with Tree Space	BO-M-004	A 6 inch straight piece of bocage with an off centre gap ready for placing a small tree.	Bocage
6 Inch Straight with Gap	BO-M-005	A 6 inch straight piece of bocage with a central gap modelled with a mud and rocks texture covering its surface.	Bocage
6 Inch Straight with Gap (Plain)	BO-M-006	A 6 inch straight piece of bocage with a central gap and the mud and rocks texture removed leaving a smooth base designed for hobbyists who want to apply their own basing textures and terrain finishes.	Bocage
3 Inch Articulated Bocage	BO-M-007	An articulating section of bocage comprised of 1.5 sections for a total length of 3 inches. The flexible nature of this model allows it to flow naturally around curved sections of road.	Bocage
4 Inch Articulated Bocage	BO-M-008	An articulating section of bocage comprised of 2 sections for a total length of 4 inches. The flexible nature of this model allows it to flow naturally around curved sections of road.	Bocage
6 Inch Articulated Bocage	BO-M-009	An articulating section of bocage comprised of 3 sections for a total length of 6 inches. The flexible nature of this model allows it to flow naturally around curved sections of road.	Bocage
8 Inch Articulated Bocage	BO-M-010	An articulating section of bocage comprised of 4 sections for a total length of 8 inches. The flexible nature of this model allows it to flow naturally around curved sections of road.	Bocage
